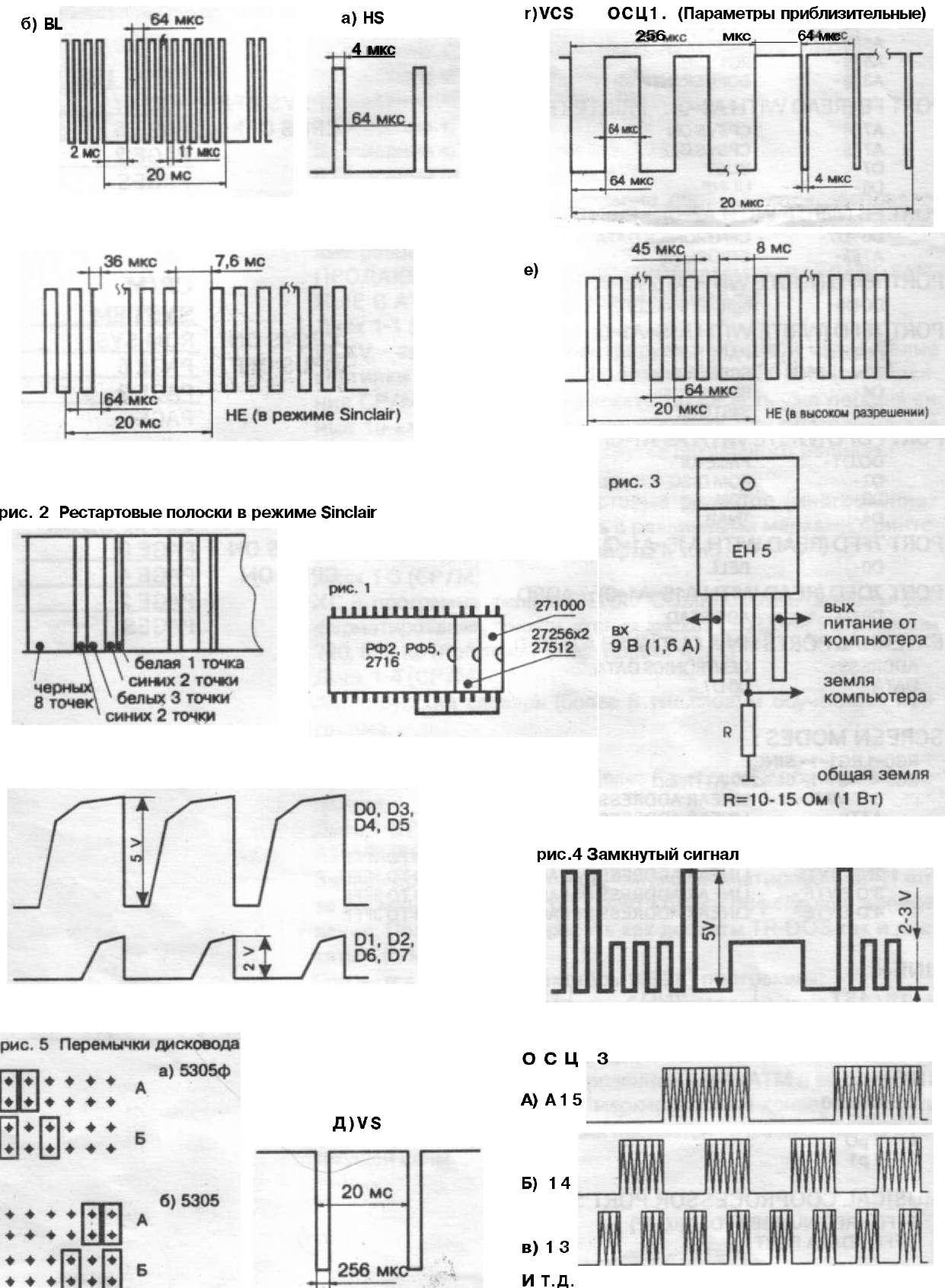

ПРИЛОЖЕНИЕ 1
ПРИЛОЖЕНИЕ 2
PORT FE (WRITE WITH A0=0): - BORDER
A7(0)- CPUS (ON)
A6(0)- RG0
A5(0)- RG1
A3(0)- BORDER INTENSITY
PORT FB (READ WITH A2=0): - PRINTER READ
A7(1)- CPSYSON
A7(0)- CPSYSOFF
D7- BUSY
D6- ULINE
PORT FB (WRITE WITH A2=0): - PRINTER WRITE
D0 - D7 - CENTRONICS DATA
A7(0)- STROBE (!!!)
PORT 7DFD (WRITE WITH A15=A9=A1=0) :
D0-D5- bgrBGR (PALLETE)
PORT 7FFD (WRITE WITH A15=A1=0): - PAGE
D0-D2- PAGE 0-2
D3- SCREEN2
D4- ROM 1
D5- S48LOCK
PORT FDFD (WRITE WITH A9-A1=0): - SYS
D0.D1- PAGE 3,4
D2- ROM DISC
D3- TON
D4- TNAB
PORT 7FFD (READ WITH A15=A1=0): - TLRD
D0- BELL
PORT 7DFD (READ WITH A15=A1 =0): - ADRD
D0-D7- ADC READ
EXTERNAL PORTS: IN & OUT WITH A2=A0=0
ADDRESS - CENTRONICS DATA
DATA- D0-D7
SINC 128
CPSYS OFF ROM 0/1
CPUS OFF PAGE 5
PAGE 2
PAGES
CP/M
SYSTEM
CPSYS ON ROM SYS
CPUS OFF PAGE 5
PAGE 2
PAGES
CP/M USER
CPSYS ON PAGE 0
CPUS ON PAGE 4
PAGE 2
PAGES
SCREEN MODES :
RG0=1.RG1=1-SINC
RG0=0.RG1=1 - 640x200 ATTR 8x1
BIT MAP - LINEAR ADDRESS IN PAGE 5
ATTR - LINEAR ADDRESS IN PAGE 1
RG0=0, RG1=0 - 320x200x16
1ST BYTE - LINEAR ADDRESS IN PAGE 5 FROM 0000 TO 1FFF
2ND BYTE - LINEAR ADDRESS IN PAGE 1 FROM 0000 TO 1FFF
3D BYTE - LINEAR ADDRESS IN PAGE 5 FROM 2000 TO 3FFF
4'D BYTE - LINEAR ADDRESS IN PAGE 1 FROM 2000 TO 3FFF
LINE-
BITS
0-2 -BGR p0
3-5 -BGR p1
6- 1p0
7- 1p1
MUSICAL COOPROCESSOR PORT'S:
FFFD - REG NUMBER PORT (00-0F)
BFFD - DATA PORT
СПИСОК ЛИТЕРАТУРЫ ПО
ПРОДУКЦИИ ATM:
1.Описание «Описание,схема ПК ATM-Турбо», 1992г.
2.Описание «ОС СР/М», 1992г.
З.Описание «BIOS и BDOS», 1992г.
4.Описание «ПК IBM PC ХТ», 1991г.
5.Описание «ПК Пентагон 2+», 1991г.
6.Описание программатора ATM.
Методики и описания регулярно переиздаются. Исправле-
ния и дополнения вносятся в соответствии с новыми верси-
ями разработок ATM.
